Modul 09: Teknik Recovery Data dan File Carving

Mata Kuliah: Digital Forensic for Military Purposes (Forensik Digital untuk Keperluan Militer)
SKS: 3 SKS
Pertemuan: 09
Topik: Teknik Recovery Data dan File Carving
Pengampu: Anindito, S.Kom., S.S., S.H., M.TI., CHFI

Tujuan Pembelajaran

Setelah menyelesaikan modul ini, mahasiswa diharapkan mampu:

  1. Memahami prinsip dasar penghapusan file dan mekanisme data remnants pada berbagai sistem file
  2. Menjelaskan konsep file carving dan teknik identifikasi file berdasarkan signature
  3. Melakukan recovery data yang terhapus menggunakan berbagai tools forensik
  4. Menerapkan teknik file carving pada unallocated space dan slack space
  5. Mengidentifikasi dan mengekstrak file berdasarkan header/footer signatures
  6. Menangani tantangan recovery pada SSD, media terenkripsi, dan damaged media
  7. Menggunakan hex editor untuk analisis manual file signature dan carving

1. Prinsip Penghapusan File dan Data Remnants

1.1 Mekanisme Penghapusan File

Penghapusan File (File Deletion) adalah proses yang menandai ruang penyimpanan sebagai tersedia untuk digunakan kembali, tetapi tidak secara fisik menghapus data dari media penyimpanan hingga area tersebut ditimpa oleh data baru.

Ketika sebuah file “dihapus”, yang sebenarnya terjadi adalah:

  1. Pointer Removal: Entry di file system table (MFT, FAT, inode) dihapus atau ditandai sebagai deleted
  2. Space Marking: Cluster atau block yang digunakan ditandai sebagai “available”
  3. Data Remains: Data sebenarnya masih ada di disk hingga area tersebut ditimpa
Tipe Penghapusan Mekanisme Recoverable? Tingkat Kesulitan
Normal Delete Pointer dihapus, data tetap ada Ya Mudah
Shift+Delete Bypass Recycle Bin, pointer dihapus Ya Mudah
Format Quick Rebuild file system table Ya Sedang
Format Full Overwrite dengan zeros Sebagian Sulit
Secure Delete Multiple overwrite passes Tidak Sangat Sulit
TRIM (SSD) Block deallocated & garbage collected Tidak Hampir Mustahil

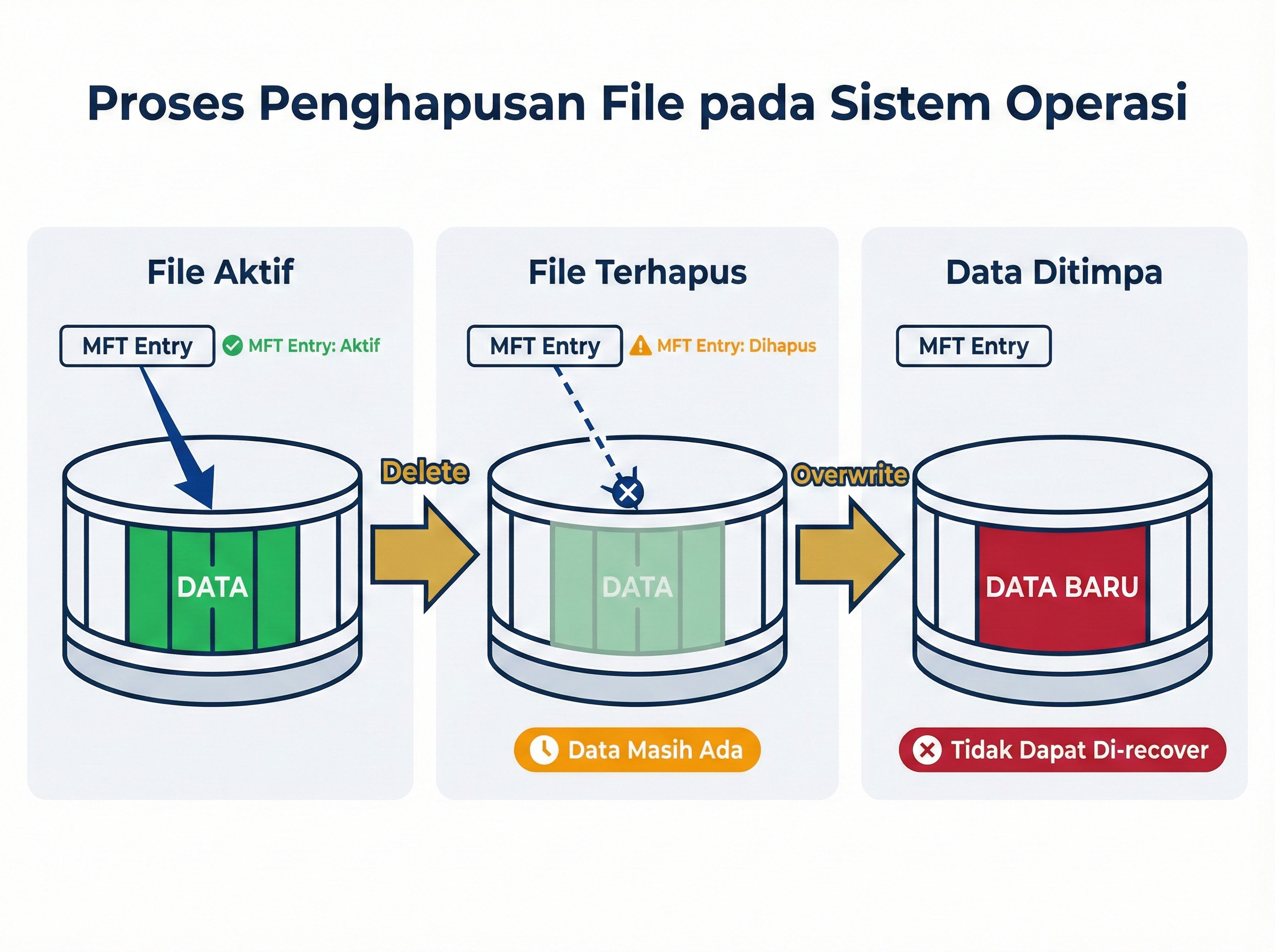

Proses Penghapusan File

Gambar 9.1: Proses penghapusan file pada sistem operasi

1.2 Data Remnants dan Artifact Locations

Data Remnants adalah sisa-sisa data yang masih dapat ditemukan setelah file dihapus atau sistem direset. Lokasi-lokasi di mana data remnants dapat ditemukan:

A. Unallocated Space

Unallocated Space adalah area pada media penyimpanan yang tidak dialokasikan untuk file aktif mana pun, tetapi mungkin berisi data dari file yang telah dihapus.

B. Slack Space

Slack Space adalah ruang yang tidak terpakai di akhir cluster terakhir yang dialokasikan untuk sebuah file.

Ada dua jenis slack space:

  1. RAM Slack: Ruang antara akhir file dan akhir sektor
  2. File Slack: Ruang antara akhir sektor terakhir dan akhir cluster
Contoh Cluster (4 KB = 8 sektor @ 512 bytes):

File aktual: 2,100 bytes
├─ Sektor 1: 512 bytes (Data)
├─ Sektor 2: 512 bytes (Data)
├─ Sektor 3: 512 bytes (Data)
├─ Sektor 4: 512 bytes (Data)
├─ Sektor 5: 52 bytes (Data)
│  └─ RAM Slack: 460 bytes ← Dapat berisi data sensitif!
├─ Sektor 6: 512 bytes (File Slack) ← Data dari file sebelumnya
├─ Sektor 7: 512 bytes (File Slack)
└─ Sektor 8: 512 bytes (File Slack)

Total Slack Space: 460 + 1,536 = 1,996 bytes

C. Free Space

Area yang telah dialokasikan sebelumnya tetapi sekarang ditandai sebagai available. Berbeda dengan unallocated space, free space masih memiliki metadata yang menunjukkan pernah digunakan.

D. Bad Sectors

Sektor yang ditandai sebagai “bad” atau tidak dapat digunakan. Sering kali masih berisi data yang dapat dibaca dengan tools khusus.

Solved Problem 1 ⭐

Soal: File berukuran 3,000 bytes disimpan pada sistem dengan cluster size 4 KB (4,096 bytes). Hitung berapa besar slack space yang terbentuk!

Penyelesaian:

Step 1: Identifikasi parameter

Step 2: Hitung space yang dialokasikan

Step 3: Hitung slack space

Jawaban: Slack space yang terbentuk adalah 1,096 bytes atau sekitar 26.8% dari cluster size. Space ini dapat berisi remnants dari file sebelumnya dan merupakan sumber penting untuk forensik digital.

Solved Problem 2 ⭐

Soal: Jelaskan mengapa file yang “dihapus” dengan Shift+Delete masih dapat di-recover!

Penyelesaian:

Step 1: Analisis proses Shift+Delete

Ketika file dihapus dengan Shift+Delete:

  1. File tidak masuk ke Recycle Bin
  2. Entry di MFT/FAT dihapus atau ditandai sebagai deleted
  3. Cluster ditandai sebagai available

Step 2: Identifikasi data yang tersisa

Yang masih ada:

Step 3: Mekanisme recovery

Recovery dimungkinkan karena:

Jawaban: File yang dihapus dengan Shift+Delete masih dapat di-recovery karena hanya pointer dan metadata yang dihapus, sedangkan data sebenarnya masih tersimpan di cluster hingga area tersebut ditimpa oleh file baru. Tools forensik dapat men-scan unallocated space dan mengidentifikasi file berdasarkan signatures atau partial metadata.

1.3 Sistem File dan Recovery Implications

Setiap sistem file memiliki karakteristik berbeda yang mempengaruhi kemampuan recovery:

Sistem File Recovery Potential Faktor Kunci Tantangan
FAT32 Sangat Tinggi Simple structure, minimal metadata Fragmentation, no journaling
NTFS Tinggi MFT records, journaling, $LogFile Compressed files, TRIM on SSD
ext4 Sedang-Tinggi Journaling, inode structure Deleted entries zeroed
APFS Rendah-Sedang Encryption by default, snapshots Snapshot management, encryption
exFAT Tinggi Similar to FAT, no journaling Limited metadata

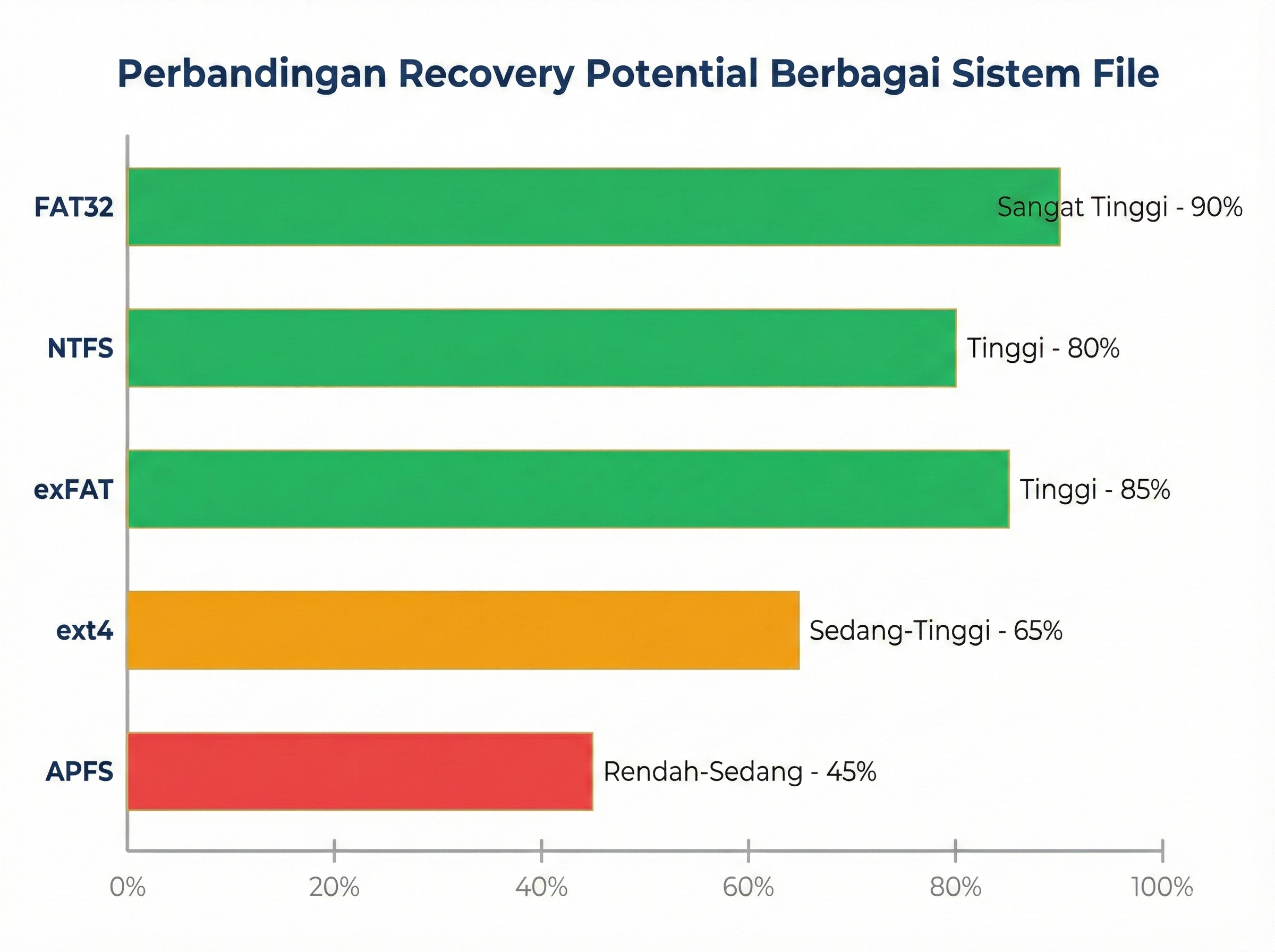

Perbandingan Recovery Potential

Gambar 9.2: Perbandingan recovery potential berbagai sistem file

Solved Problem 3 ⭐

Soal: Sistem file mana yang memberikan kemungkinan recovery tertinggi dan mengapa?

Penyelesaian:

Step 1: Evaluasi karakteristik setiap sistem file

FAT32:

NTFS:

ext4:

Step 2: Ranking berdasarkan recovery potential

  1. FAT32 (90%)
  2. exFAT (85%)
  3. NTFS (80%)
  4. ext4 (65%)
  5. APFS (45%)

Jawaban: FAT32 memberikan kemungkinan recovery tertinggi karena:

  1. Struktur sangat sederhana - tidak ada overhead kompleks
  2. Minimal metadata deletion - hanya karakter pertama filename yang diubah
  3. Tidak ada journaling - tidak ada mekanisme tambahan yang menghapus data
  4. Widely documented - tools recovery sangat mature

Untuk investigasi forensik, FAT32 adalah sistem file paling “forensics-friendly” meskipun memiliki keterbatasan untuk penggunaan modern.

2. File Carving: Konsep dan Teknik

2.1 Definisi File Carving

File Carving adalah teknik untuk mengekstrak file dari unallocated space atau image forensik tanpa menggunakan metadata sistem file, melainkan berdasarkan struktur internal file (signatures, headers, footers).

File carving diperlukan ketika:

2.2 File Signatures (Magic Bytes)

Setiap tipe file memiliki file signature atau magic bytes yang unik di header dan/atau footer file.

File Signatures Common

File Type Extension Header (Hex) Footer (Hex) Offset
JPEG .jpg, .jpeg FF D8 FF FF D9 0
PNG .png 89 50 4E 47 0D 0A 1A 0A 49 45 4E 44 AE 42 60 82 0
GIF .gif 47 49 46 38 (GIF8) 00 3B 0
PDF .pdf 25 50 44 46 (%PDF) 25 25 45 4F 46 (%%EOF) 0
ZIP .zip 50 4B 03 04 (PK..) 50 4B 05 06 0
DOCX .docx 50 4B 03 04 50 4B 05 06 0
RAR .rar 52 61 72 21 1A 07 (Rar!) - 0
MP4 .mp4 00 00 00 XX 66 74 79 70 - 0
EXE .exe 4D 5A (MZ) - 0
SQLite .db, .sqlite 53 51 4C 69 74 65 20 66 6F 72 6D 61 74 20 33 - 0

Contoh Analisis Header JPEG:

Offset      Hex                                             ASCII
--------    ----------------------------------------------  ----------------
00000000    FF D8 FF E0 00 10 4A 46 49 46 00 01 01 01 00   ÿØÿà..JFIF......
00000010    48 00 48 00 00 FF DB 00 43 00 03 02 02 03 02   H.H..ÿÛ.C.......
           │  │  │  │           │  │  │  │
           │  │  │  │           └──────────── JFIF identifier
           │  │  └─└──────────────────────── Application marker
           └─└───────────────────────────── JPEG SOI (Start of Image)

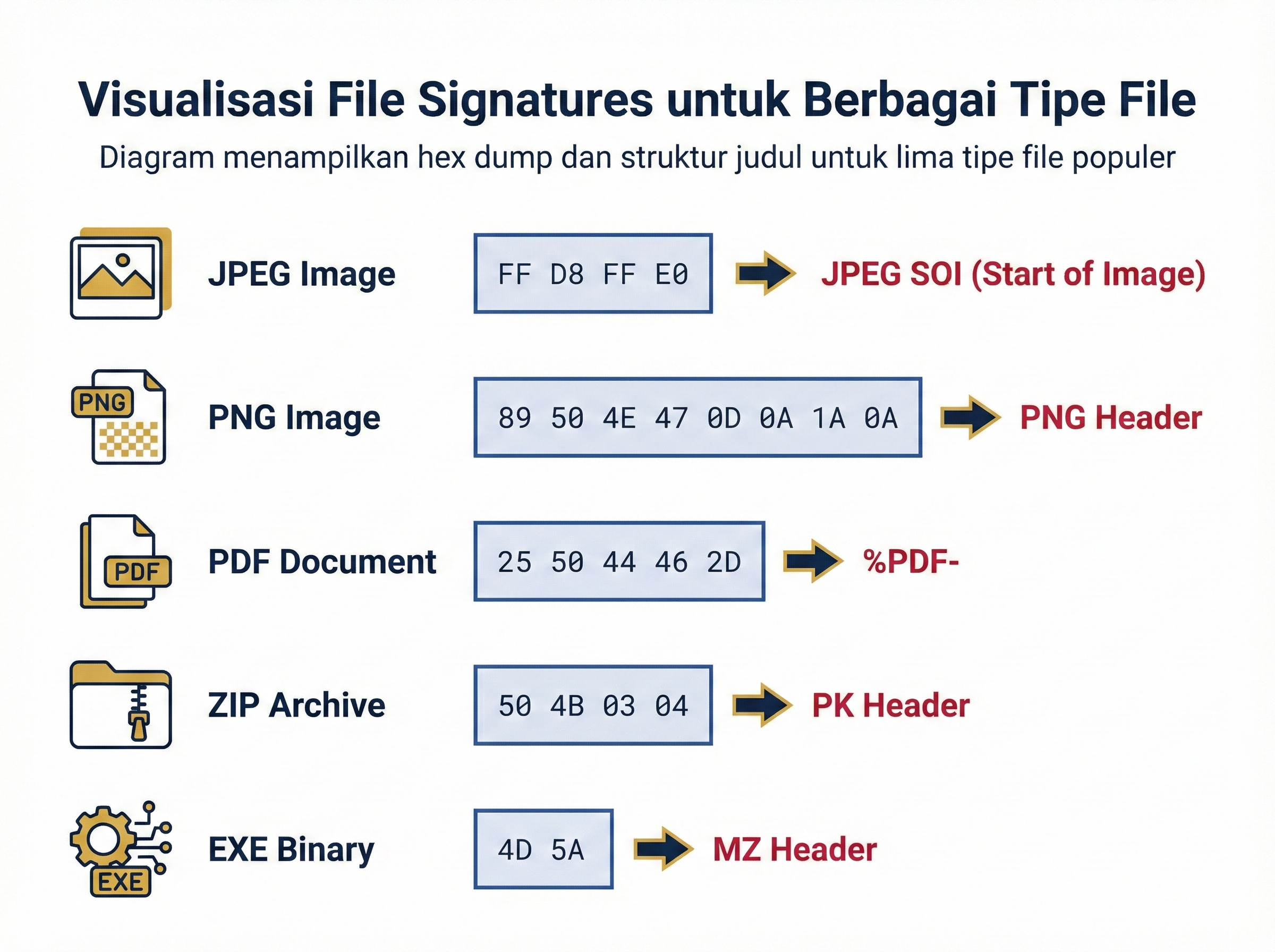

File Signatures Visualization

Gambar 9.3: Visualisasi file signatures untuk berbagai tipe file

Solved Problem 4 ⭐⭐

Soal: Diberikan hex dump berikut dari awal sebuah file. Identifikasi tipe file dan jelaskan analisis Anda!

00000000: 25 50 44 46 2D 31 2E 34 0A 25 E2 E3 CF D3 0A 0A
00000010: 31 20 30 20 6F 62 6A 0A 3C 3C 2F 54 79 70 65 2F

Penyelesaian:

Step 1: Analisis bytes awal

25 50 44 46 2D = %PDF-
31 2E 34       = 1.4

Step 2: Identifikasi signature

Step 3: Analisis struktur tambahan

25 50 44 46 2D 31 2E 34 = %PDF-1.4

Menunjukkan PDF versi 1.4

Step 4: Verifikasi dengan tabel signatures

Byte Pattern ASCII Tipe File
25 50 44 46 %PDF PDF Document

Jawaban: File ini adalah PDF Document versi 1.4. Identifikasi dilakukan berdasarkan:

  1. Header signature 25 50 44 46 yang merupakan %PDF dalam ASCII
  2. Version string 2D 31 2E 34 yang merupakan -1.4
  3. Struktur object 31 20 30 20 6F 62 6A (1 0 obj) yang merupakan karakteristik PDF structure

Solved Problem 5 ⭐

Soal: Mengapa file carving berdasarkan extension saja tidak cukup dan harus menggunakan file signatures?

Penyelesaian:

Step 1: Identifikasi masalah dengan extension-based identification

Masalah:

  1. Extension dapat diubah dengan mudah
  2. File tanpa extension (dalam unallocated space)
  3. Extension mismatch (file .jpg yang sebenarnya .png)
  4. Malware yang menyamar dengan extension palsu

Step 2: Keuntungan signature-based identification

Keuntungan:

  1. Verifikasi struktur internal - tidak bisa dimanipulasi
  2. Bekerja tanpa metadata - langsung ke raw data
  3. Deteksi file mismatch - security analysis
  4. Recovery dari corrupted file system

Step 3: Contoh kasus

Skenario: File bernama document.pdf tetapi header: FF D8 FF E0 (JPEG)

Jawaban: File carving harus menggunakan signatures karena:

  1. Extension dapat dimanipulasi dengan mudah oleh attacker atau user
  2. Metadata tidak selalu tersedia pada unallocated space
  3. Signature adalah ground truth yang merepresentasikan struktur internal file
  4. Essential untuk security - mendeteksi file yang disembunyikan atau malware

Dalam forensik digital militer, signature-based identification adalah critical untuk mendeteksi:

2.3 Carving Techniques

A. Header/Footer Carving

Teknik paling umum yang mencari pasangan header dan footer yang sesuai.

Algorithm:

1. Scan image untuk header signature
2. Ketika ditemukan:
   a. Catat offset awal
   b. Scan forward untuk footer signature
   c. Extract data dari header ke footer
   d. Validasi extracted file
3. Continue scanning

Limitations:

B. Header/Size Carving

Untuk file yang tidak memiliki footer tetapi size information dalam header.

Contoh: PNG Files

PNG Header:
89 50 4E 47 0D 0A 1A 0A  00 00 00 0D 49 48 44 52
│                          │           │
└─ PNG Signature           │           └─ IHDR chunk
                           └─ Chunk length (13 bytes)

Algorithm:

1. Scan untuk header signature
2. Parse header untuk size information
3. Extract berdasarkan calculated size
4. Validate dengan footer (jika ada)

C. Block-based Carving

Untuk file yang sangat fragmented, carving dilakukan per block dan kemudian di-reassemble.

Challenges:

D. Statistical Carving

Menggunakan analisis statistik untuk mengidentifikasi file boundaries tanpa signatures.

Solved Problem 6 ⭐⭐

Soal: Sebuah PNG file memiliki header berikut. Hitung total size file yang harus di-extract!

89 50 4E 47 0D 0A 1A 0A  00 00 00 0D 49 48 44 52
00 00 02 00 00 00 01 80  08 02 00 00 00 ...

Width: 512 pixels, Height: 384 pixels, Bit depth: 8, Color type: 2 (RGB)

Penyelesaian:

Step 1: Parse PNG header

89 50 4E 47 0D 0A 1A 0A = PNG signature
00 00 00 0D             = IHDR chunk length (13 bytes)
49 48 44 52             = "IHDR"
00 00 02 00             = Width (512)
00 00 01 80             = Height (384)
08                      = Bit depth (8)
02                      = Color type (RGB = 3 channels)

Step 2: Hitung raw image data size

Pixels       = Width × Height = 512 × 384 = 196,608 pixels
Bytes/pixel  = 3 (RGB) × 1 (8-bit) = 3 bytes
Raw data     = 196,608 × 3 = 589,824 bytes

Step 3: Estimasi compressed size

PNG menggunakan DEFLATE compression (ratio typically 2:1 to 4:1)

Estimated compressed = 589,824 / 3 ≈ 196,608 bytes

Step 4: Tambahkan overhead

PNG overhead:
- Signature:    8 bytes
- IHDR chunk:   25 bytes (13 + 12)
- IDAT chunks:  ~196,608 bytes
- IEND chunk:   12 bytes
Total:          ~196,653 bytes

Jawaban: File PNG ini akan berukuran sekitar 197 KB (196,653 bytes). Untuk carving purposes:

Carving tools harus menggunakan footer 49 45 4E 44 AE 42 60 82 (IEND chunk) untuk menentukan exact endpoint.

3. Recovery Tools dan Teknik

3.1 Recuva - User-Friendly Recovery

Recuva adalah tool recovery yang user-friendly untuk Windows, cocok untuk quick recovery dari deleted files.

Features:

Workflow:

1. Launch Recuva
2. Pilih file type (atau All Files)
3. Pilih location (specific folder atau entire drive)
4. Enable Deep Scan untuk better results
5. Scan dan preview results
6. Select files to recover
7. Choose recovery destination (JANGAN ke drive yang sama!)

Recovery Success Indicators:

Status Icon Meaning Recovery Chance
Excellent 🟢 File fully recoverable 95-100%
Good 🟡 Partially overwritten 60-90%
Poor 🔴 Heavily overwritten 10-50%
Unrecoverable ⚫ Completely overwritten <5%

Solved Problem 7 ⭐

Soal: Mengapa saat melakukan file recovery, kita TIDAK boleh menyimpan hasil recovery ke drive yang sama dengan sumber?

Penyelesaian:

Step 1: Analisis risiko

Ketika melakukan recovery:

  1. Tool akan menulis recovered files ke destination
  2. Jika destination = source drive, akan menulis ke unallocated space
  3. Unallocated space adalah tempat file yang akan di-recover berada!
  4. Proses recovery akan menimpa data yang sedang di-recover

Step 2: Skenario disaster

Scenario:
- 100 deleted photos di drive C:
- Start recovery ke C:\Recovered\
- Photo 1-20: Recovered successfully
- Photo 21-80: Overwritten by recovered photo 1-20
- Photo 81-100: Incomplete recovery
Result: Net loss data!

Step 3: Best practice

✓ CORRECT: Recovery dari C: ke D: (external drive) ✗ WRONG: Recovery dari C: ke C:\Recovered\

Jawaban: Kita TIDAK boleh menyimpan hasil recovery ke drive yang sama karena:

  1. Overwrite risk - hasil recovery akan menulis ke unallocated space tempat deleted files berada
  2. Data loss cascade - recovery file awal akan merusak file selanjutnya
  3. Integrity violation - merusak bukti forensik
  4. Forensic best practice - write-once principle untuk preservation

Best Practice Forensik:

3.2 PhotoRec - Powerful Cross-Platform Carving

PhotoRec adalah tool open-source powerful untuk file carving yang bekerja pada berbagai platform dan file systems.

Key Features:

Supported File Types (Partial List):

Category Formats
Images jpg, png, gif, bmp, tiff, raw (cr2, nef, dng)
Video mp4, avi, mov, mkv, flv, wmv
Audio mp3, wav, flac, ogg, m4a
Documents pdf, doc, docx, xls, xlsx, ppt, pptx
Archives zip, rar, 7z, tar, gz
Databases sqlite, mdb, pst
Executables exe, dll, elf

Command Line Usage:

# Interactive mode
photorec /dev/sda1

# Command line mode
photorec /d /path/to/recovery/dir /log /dev/sda1

# Specify file types
photorec /d /path/to/recovery/dir /log /cmd /dev/sda1 fileopt,jpg,enable,fileopt,png,enable,search

Recovery Process:

┌─────────────────────────────────────────┐
│ 1. Select Source                        │
│    - Physical drive                     │
│    - Partition                          │
│    - Image file (.dd, .E01)             │
├─────────────────────────────────────────┤
│ 2. Select File System Type              │
│    - FAT/NTFS/ext2/ext3/etc             │
│    - Whole (ignore file system)         │
├─────────────────────────────────────────┤
│ 3. Select Search Space                  │
│    - Free: Unallocated space only       │
│    - Whole: Entire partition            │
├─────────────────────────────────────────┤
│ 4. Select Destination                   │
│    - MUST be different drive!           │
├─────────────────────────────────────────┤
│ 5. Start Recovery                       │
│    - Monitor progress                   │
│    - Review log file                    │
└─────────────────────────────────────────┘

Solved Problem 8 ⭐⭐

Soal: PhotoRec recovered 500 files dari USB drive 8GB. Hasil recovery menunjukkan struktur folder recup_dir.1, recup_dir.2, dst. Mengapa PhotoRec tidak mempertahankan struktur folder dan nama file asli?

Penyelesaian:

Step 1: Understand PhotoRec’s carving methodology

PhotoRec menggunakan signature-based carving:

Step 2: Analisis file system metadata

File system metadata yang hilang:

MFT/FAT Entry contains:
├─ Filename ←──────────── NOT RECOVERED
├─ Directory path ←────── NOT RECOVERED
├─ Timestamps ←────────── NOT RECOVERED
├─ Permissions ←────────── NOT RECOVERED
└─ Data clusters ←──────── RECOVERED (via signature)

Step 3: PhotoRec recovery structure

Destination:
├─ recup_dir.1/
│   ├─ f0000001.jpg  ← Generic name
│   ├─ f0000002.pdf
│   └─ ...           ← Up to 500 files per dir
├─ recup_dir.2/
│   ├─ f0000501.png
│   └─ ...
└─ report.xml        ← Recovery report

Step 4: Keuntungan dan keterbatasan

Keuntungan:

Keterbatasan:

Jawaban: PhotoRec tidak mempertahankan struktur folder dan nama file asli karena:

  1. Signature-based carving - hanya membaca raw sectors tanpa menggunakan file system metadata
  2. Metadata terpisah - filename, directory path, dan timestamps tersimpan di MFT/FAT, bukan di file content
  3. Generic naming - karena original filename tidak tersedia, PhotoRec menggunakan sequential numbering (f0000001, f0000002, dst.)
  4. Flat structure - semua recovered files disimpan di recup_dir.X folders untuk organization

Trade-off:

Untuk investigation purposes:

3.3 Foremost dan Scalpel - Advanced Carving Tools

Foremost

Foremost adalah command-line carving tool yang originally developed oleh US Air Force.

Installation (WSL Ubuntu):

sudo apt update
sudo apt install foremost

Configuration File: /etc/foremost.conf

# Contoh configuration
jpg     y   150000000   \xff\xd8\xff\xe0\x00\x10    \xff\xd9
png     y   10000000    \x89\x50\x4e\x47            \x49\x45\x4e\x44\xae\x42\x60\x82
pdf     y   10000000    \x25\x50\x44\x46            \x25\x45\x4f\x46

Format: <type> <case_sensitive> <max_size> <header> <footer>

Usage:

# Basic recovery
foremost -t jpg,png,pdf -i evidence.dd -o /output/dir

# All file types
foremost -t all -i /dev/sdb1 -o /output/dir

# Custom config
foremost -c custom.conf -i image.dd -o /output/dir

# Verbose mode
foremost -v -t all -i evidence.dd -o /output/dir

Scalpel

Scalpel adalah fork dari Foremost dengan performa lebih baik untuk large images.

Installation:

sudo apt install scalpel

Configuration: /etc/scalpel/scalpel.conf

# Scalpel config (similar to Foremost)
jpg     y   200000000   \xff\xd8\xff    \xff\xd9
png     y   20000000    \x89PNG         IEND\xae\x42\x60\x82
zip     y   50000000    PK\x03\x04      PK\x05\x06

Key Differences from Foremost:

Feature Foremost Scalpel
Threading Single-threaded Multi-threaded
Speed Slower Faster (2-3x)
Memory Lower Higher
Preview No Yes (with -p)
Best For Small images Large images

Usage:

# Basic carving
scalpel -b -o /output/dir evidence.dd

# Specific file types
scalpel -b -c custom.conf -o /output/dir evidence.dd

# Preview mode (no extraction)
scalpel -p -o /output/dir evidence.dd

# Verbose
scalpel -b -v -o /output/dir evidence.dd

Solved Problem 9 ⭐⭐

Soal: Anda memiliki forensic image sebesar 500 GB. Tool mana yang lebih cocok: Foremost atau Scalpel? Jelaskan reasoning Anda!

Penyelesaian:

Step 1: Analisis karakteristik image

Image size: 500 GB
Expected carving time:
- Single-threaded: ~20-30 hours
- Multi-threaded: ~8-10 hours

Step 2: Bandingkan tools

Kriteria Foremost Scalpel Winner
Threading Single Multi Scalpel
Speed ~100 MB/s ~250 MB/s Scalpel
Memory usage ~100 MB ~300 MB Foremost
Preview capability No Yes Scalpel

Step 3: Calculate time estimates

Foremost:
500 GB / 100 MB/s = 5,000 seconds / 60 = ~83 minutes per pass
With overhead: ~2-3 hours

Scalpel:
500 GB / 250 MB/s = 2,000 seconds / 60 = ~33 minutes per pass
With overhead: ~1 hour

Step 4: Rekomendasi

Untuk 500 GB image: SCALPEL

Alasan:

  1. Multi-threading - memanfaatkan CPU multi-core modern
  2. 2-3x faster - critical untuk large images
  3. Preview mode - dapat dry-run sebelum full carving
  4. Memory usage tidak menjadi issue untuk modern systems

Jawaban: Untuk forensic image 500 GB, Scalpel adalah pilihan lebih baik karena:

  1. Performance: Multi-threaded processing memberikan 2-3x speed improvement
    • Foremost: ~2-3 hours
    • Scalpel: ~1 hour

  2. Scalability: Designed untuk large images dengan efficient memory management

  3. Preview capability: Dapat melakukan dry-run tanpa extraction (flag -p)

  4. Hardware utilization: Memanfaatkan multiple CPU cores

Exception: Gunakan Foremost jika:

Best Practice:

3.4 Autopsy File Carver

Autopsy memiliki built-in file carving capability yang terintegrasi dengan case management.

Carving Modules:

Ingest Modules:
├─ File Type Identification
├─ Extension Mismatch Detector
├─ Photorec Carver
└─ Tika MIME Type Detection

Autopsy Carving Workflow:

1. Add Data Source ke Case
   └─ Select disk image atau physical device

2. Configure Ingest Modules
   ├─ Enable "Photorec Carver"
   ├─ Enable "File Type Identification"
   └─ Enable "Extension Mismatch Detector"

3. Run Ingest (Automatic carving)
   └─ Monitor progress di Ingest Inbox

4. Review Results
   ├─ Views > File Types > By Extension
   ├─ Views > File Types > By MIME Type
   └─ Tags > Carved Files

5. Export Carved Files
   └─ Right-click > Extract File(s)

Advantages over Command-Line Tools:

Feature Command-Line Autopsy
GUI No Yes
Integration Separate Unified
Timeline Manual Automatic
Reporting Manual Built-in
Hash Database External Integrated
Tagging No Yes
Case Management No Yes

Solved Problem 10 ⭐

Soal: Dalam konteks investigasi forensik militer, apa keuntungan menggunakan Autopsy dibanding command-line tools (PhotoRec, Foremost, Scalpel)?

Penyelesaian:

Step 1: Identifikasi kebutuhan investigasi militer

Kebutuhan:

Step 2: Evaluasi Autopsy capabilities

Case Management:

Case Information:
├─ Case name, number
├─ Investigator details
├─ Organization
├─ Notes dan documentation
└─ Multiple data sources

Integrated Workflow:

Autopsy Workflow:
1. Create case ←────────── Documentation
2. Add evidence ←────────── Chain of custody
3. Automated analysis ←──── Consistency
4. Tagging & notes ←─────── Investigation tracking
5. Timeline ←──────────────── Correlation
6. Generate report ←─────── Presentation

Step 3: Perbandingan praktis

Command-Line Approach:

# Step 1: Carve with PhotoRec
photorec evidence.dd

# Step 2: Organize results (manual)
organize-recovered-files.sh

# Step 3: Document findings (manual)
vim investigation-notes.txt

# Step 4: Create report (manual)
generate-report.py

# Step 5: Maintain chain of custody (manual)
update-custody-log.xlsx

Autopsy Approach:

All steps integrated in single platform:
- Automatic documentation
- Built-in reporting
- Integrated timeline
- Tag-based organization

Jawaban: Untuk investigasi forensik militer, Autopsy lebih cocok karena:

1. Chain of Custody Integration

2. Professional Reporting

3. Timeline Analysis

4. Team Collaboration

5. Military-Specific Benefits

Command-line tools (PhotoRec, Scalpel) tetap valuable untuk:

Best Practice: Gunakan hybrid approach:

4. Manual Carving dengan Hex Editor

4.1 HxD Hex Editor

HxD adalah free hex editor untuk Windows yang powerful untuk manual analysis dan carving.

Key Features:

Interface Overview:

┌───────────────────────────────────────────────────────┐
│  Offset   │  Hex View              │  ASCII View      │
├───────────┼────────────────────────┼──────────────────┤
│ 00000000  │ FF D8 FF E0 00 10 4A   │ ÿØÿà..J          │
│ 00000010  │ 46 49 46 00 01 01 01   │ FIF.....         │
│ 00000020  │ 00 48 00 48 00 00 FF   │ .H.H...ÿ         │
└───────────┴────────────────────────┴──────────────────┘
           ↑                          ↑
      Hexadecimal                   ASCII

Manual Carving Workflow:

Step 1: Open Image/Drive
├─ File > Open
├─ Select disk image atau physical drive
└─ Read-only mode (recommended)

Step 2: Search for File Signature
├─ Search > Find (Ctrl+F)
├─ Search type: Hex values
├─ Enter signature: FF D8 FF E0 (JPEG)
└─ Find All untuk multiple occurrences

Step 3: Identify File Boundaries
├─ Mark header offset
├─ Search for footer: FF D9 (JPEG)
├─ Calculate size
└─ Verify integrity

Step 4: Extract File
├─ Select byte range
├─ Edit > Copy
├─ File > New
├─ Edit > Paste
└─ Save extracted file

Step 5: Validate
├─ Open dengan appropriate viewer
├─ Check for corruption
└─ Document findings

Solved Problem 11 ⭐⭐⭐

Soal: Anda menemukan hex pattern berikut dalam unallocated space. Extract file JPEG secara manual dan hitung size-nya!

Offset      Hex Dump
0x00000000  FF D8 FF E0 00 10 4A 46 49 46 00 01 01 01 00 48
0x00000010  00 48 00 00 FF DB 00 43 00 03 02 02 03 02 02 03
...
[many lines]
...
0x00012450  B2 C1 A4 8F 23 1A 45 67 FF D9 00 00 00 00 00 00

Penyelesaian:

Step 1: Identifikasi JPEG signatures

Header:

FF D8 FF E0 = JPEG SOI (Start of Image)
4A 46 49 46 = "JFIF"

✓ Valid JPEG header di offset 0x00000000

Footer:

FF D9 = JPEG EOI (End of Image)

✓ Valid JPEG footer di offset 0x00012450 + 0x09 = 0x00012459

Step 2: Calculate file size

Header offset:  0x00000000
Footer offset:  0x00012459
Footer marker:  FF D9 (2 bytes)

File ends at:   0x00012459 + 0x02 = 0x0001245B

File size = End - Start
         = 0x0001245B - 0x00000000
         = 0x0001245B
         = 74,843 bytes (decimal)
         = 73.09 KB

Step 3: Manual extraction steps

HxD Procedure:
1. Goto offset 0x00000000
2. Begin Selection
3. Goto offset 0x0001245A (last byte sebelum footer FF D9)
4. Select Through (includes footer)
5. Edit > Copy
6. File > New
7. Edit > Paste
8. Save As: recovered_image_001.jpg

Step 4: Verification

Verification steps:
1. Check file size: 74,843 bytes ✓
2. Verify header: FF D8 FF E0 ✓
3. Verify footer: FF D9 ✓
4. Open dengan image viewer ✓
5. Calculate hash: SHA-256 untuk documentation

Jawaban:

File Size: 74,843 bytes (73.09 KB)

Extraction Range:

Validation:

File: recovered_image_001.jpg
Size: 74,843 bytes
Type: JPEG image
Header: FF D8 FF E0 (JFIF)
Footer: FF D9 (EOI)
Status: ✓ Valid JPEG file

Documentation untuk Chain of Custody:

EXTRACTED FILE RECORD
======================
Source: [Source image/drive]
Location: Unallocated space, offset 0x00000000
File Type: JPEG image
Size: 74,843 bytes (73.09 KB)
Extracted By: [Investigator Name]
Date/Time: [Timestamp]
Hash (SHA-256): [Calculate hash]
Notes: Complete JPEG file with valid header/footer

Critical Steps:

  1. ✓ Always include footer dalam extraction
  2. ✓ Verify signature sebelum extraction
  3. ✓ Test recovered file
  4. ✓ Document semua findings
  5. ✓ Calculate hash untuk integrity

4.2 Advanced Hex Editor Techniques

A. Recognizing File Structures

JPEG Structure:

FF D8 FF E0          ← SOI + APP0 marker
  00 10              ← APP0 length
  4A 46 49 46 00     ← "JFIF"
  01 01              ← Version
  ...
  [Image data with multiple segments]
  ...
FF D9                ← EOI marker

PNG Structure:

89 50 4E 47 0D 0A 1A 0A    ← PNG signature
  00 00 00 0D              ← Chunk length
  49 48 44 52              ← "IHDR"
  [Width, Height, etc]
  ...
  [IDAT chunks with image data]
  ...
  00 00 00 00              ← Chunk length
  49 45 4E 44              ← "IEND"
  AE 42 60 82              ← IEND CRC

PDF Structure:

25 50 44 46 2D 31 2E 34    ← "%PDF-1.4"
  ...
  [PDF objects and streams]
  ...
25 25 45 4F 46              ← "%%EOF"

B. Detecting Fragmentation

Signs of fragmented files:

Fragmented JPEG Detection:

Offset 0x00000000: FF D8 FF E0 (SOI) ✓
Offset 0x00001000: FF D8 FF E0 (SOI again) ← Fragment!
                   Should be FF DA (SOS) or FF D9 (EOI)

C. Carving Encrypted Files

Encrypted files memiliki characteristics:

Example: TrueCrypt Volume

54 52 55 45 43 52 59 50 54    ← "TRUECRYPT"
  ...
  [High entropy data]
  ...

Cannot carve internal structure without decryption!

Solved Problem 12 ⭐⭐⭐

Soal: Dalam investigasi insiden keamanan di Kodam Jaya, ditemukan hex pattern berikut di USB drive seorang prajurit yang dicurigai. Analisis pattern ini dan identifikasi file type beserta implikasi keamanannya!

00000000: 50 4B 03 04 14 00 01 00  63 00 8D 51 4C 55 AA BB
00000010: CC DD EE FF 00 11 22 33  44 55 66 77 88 99 AA BB
[... many lines of random-looking bytes ...]
00012450: 50 4B 01 02 14 00 14 00  01 00 63 00 8D 51 4C 55

Penyelesaian:

Step 1: Identifikasi file signature

50 4B 03 04 = ZIP file header ("PK..")

Ini adalah ZIP archive atau ZIP-based format (DOCX, XLSX, APK, PPTX, dll).

Step 2: Analisis encryption indicators

50 4B 03 04              ← ZIP signature
  14 00                  ← Version needed
  01 00                  ← General purpose bit flag
      ^^^
      └──────────────── Bit 0 set = ENCRYPTED!

Bit flag 0x0001 = 0000 0001 binary
                       └───────── Bit 0: Encryption flag

Step 3: Analyze data pattern

Random-looking bytes:
AA BB CC DD EE FF 00 11 22 33 44 55 66 77 88 99 AA BB

High entropy = consistent dengan encrypted data.

Step 4: Identify central directory

50 4B 01 02 = Central directory file header

Confirms valid ZIP structure.

Step 5: Security Implications untuk konteks militer

Temuan:

Red Flags:

  1. 🚨 Encrypted archive di device personal
  2. 🚨 Tidak terdaftar dalam inventory
  3. 🚨 High entropy (strong encryption)
  4. 🚨 Context: Security incident investigation

Jawaban:

File Type: Password-protected ZIP archive (atau ZIP-based format seperti DOCX)

Technical Details:

File Signature: 50 4B 03 04 (ZIP/PK format)
Encryption: YES (bit flag 0x0001 set)
Encryption Method: Likely AES-256
Size: ~74 KB (approximate dari offset range)
Status: ENCRYPTED - Cannot carve internal contents

Security Implications (Konteks Militer):

IMMEDIATE CONCERNS:

  1. Data Exfiltration Risk: Encrypted archive di removable media dapat mengindikasikan:
    • Transfer dokumen rahasia
    • Bypass DLP (Data Loss Prevention) systems
    • Covert data channel
  2. Policy Violation: TNI biasanya memiliki policy strict tentang:
    • Penggunaan removable media
    • Encrypted containers di device personal
    • Data classification handling
  3. Insider Threat Indicator: Kombinasi faktor:
    • Encrypted file di personal USB
    • Security incident context
    • Concealment attempt

RECOMMENDED ACTIONS:

IMMEDIATE:
├─ Preserve evidence (forensic image USB)
├─ Document chain of custody
├─ Report ke security officer
└─ Initiate formal investigation

INVESTIGATION:
├─ Interview subject
├─ Request password (with proper authority)
├─ Examine device registration logs
├─ Check network exfiltration logs
└─ Correlate dengan access logs

TECHNICAL ANALYSIS:
├─ Attempt password recovery
│   ├─ Hashcat/John the Ripper
│   ├─ Dictionary attack
│   └─ Known password patterns
├─ Examine metadata
│   ├─ Creation time
│   ├─ Modification time
│   └─ Tool signatures
└─ Context analysis
    ├─ Other files pada USB
    ├─ Timeline correlation
    └─ Subject's role & access

LEGAL CONSIDERATIONS:

CONCLUSION: File ini adalah HIGH PRIORITY EVIDENCE yang memerlukan:

  1. Immediate preservation
  2. Formal investigation
  3. Possible involvement dari legal authority
  4. Correlation dengan intelligence data

Cannot proceed dengan carving tanpa decryption, requires:

5. Database Carving

5.1 SQLite Database Recovery

SQLite adalah embedded database yang umum digunakan di:

SQLite Structure:

SQLite File Format:
┌─────────────────────────────────────┐
│ File Header (100 bytes)             │
│ - Magic: "SQLite format 3"          │
│ - Page size                         │
│ - Database size in pages            │
├─────────────────────────────────────┤
│ Page 1: Database Schema             │
│ - sqlite_master table               │
│ - CREATE TABLE statements           │
├─────────────────────────────────────┤
│ Pages 2-N: Data Pages               │
│ - B-tree structures                 │
│ - Actual table data                 │
└─────────────────────────────────────┘

SQLite Signature:

53 51 4C 69 74 65 20 66 6F 72 6D 61 74 20 33 00
"S  Q  L  i  t  e     f  o  r  m  a  t     3 \0"

Recovery Workflow:

# 1. Carve SQLite databases
foremost -t sqlite -i evidence.dd -o /output

# 2. Validate recovered databases
sqlite3 recovered_db.sqlite "PRAGMA integrity_check;"

# 3. Extract schema
sqlite3 recovered_db.sqlite ".schema"

# 4. Query data
sqlite3 recovered_db.sqlite "SELECT * FROM table_name;"

# 5. Export to CSV
sqlite3 -csv recovered_db.sqlite "SELECT * FROM table_name;" > output.csv

Tools for SQLite Analysis:

Tool Purpose Platform
DB Browser for SQLite GUI database viewer Windows/Linux/Mac
sqlite3 Command-line shell All
SQLite Analyzer Database structure analysis Windows
Undark Recover deleted SQLite records Linux

Solved Problem 13 ⭐⭐

Soal: Ditemukan file dengan header berikut dalam evidence image. Identifikasi database type dan jelaskan cara mengekstrak informasi dari database tersebut!

00000000: 53 51 4C 69 74 65 20 66 6F 72 6D 61 74 20 33 00
00000010: 10 00 01 01 00 40 20 20 00 00 00 03 00 00 00 02

Penyelesaian:

Step 1: Identify database signature

53 51 4C 69 74 65 20 66 6F 72 6D 61 74 20 33 00
= "SQLite format 3\0"

✓ This is a SQLite database file (version 3)

Step 2: Parse header information

Byte 16-17: 10 00 = Page size (0x1000 = 4096 bytes)
Byte 18:    01    = Write format (1 = legacy)
Byte 19:    01    = Read format (1 = legacy)
Byte 20:    00    = Reserved space
Byte 28-31: 00 00 00 03 = Database size in pages (3 pages)
Byte 32-35: 00 00 00 02 = First freelist trunk page (page 2)

Step 3: Extraction procedure

# Step A: Extract database file
# (Using hex editor atau carving tool)

# Step B: Validate integrity
sqlite3 extracted.db "PRAGMA integrity_check;"
# Expected: "ok"

# Step C: Extract schema
sqlite3 extracted.db ".schema"

# Example output:
# CREATE TABLE users (
#   id INTEGER PRIMARY KEY,
#   username TEXT,
#   password_hash TEXT,
#   last_login TIMESTAMP
# );

# Step D: Query data
sqlite3 extracted.db "SELECT * FROM users;"

# Step E: Export results
sqlite3 -header -csv extracted.db "SELECT * FROM users;" > users_export.csv

Step 4: Forensic analysis techniques

-- Examine table struktur
.tables

-- Count records
SELECT COUNT(*) FROM users;

-- Check for deleted records (if available)
-- Requires specialized tools like Undark

-- Export timeline
SELECT
  datetime(last_login, 'unixepoch') as login_time,
  username
FROM users
ORDER BY last_login DESC;

Jawaban:

Database Type: SQLite version 3

Technical Details:

Signature: 53 51 4C 69 74 65 20 66 6F 72 6D 61 74 20 33
Page Size: 4096 bytes (0x1000)
Database Size: 3 pages = 12,288 bytes
Format: Legacy (Write: 1, Read: 1)

Extraction Procedure:

Step 1: Identify & Extract
├─ Locate header: 53 51 4C 69 74 65...
├─ Calculate size: 3 pages × 4096 = 12,288 bytes
├─ Extract complete database
└─ Save as .sqlite or .db

Step 2: Validate
├─ PRAGMA integrity_check ← Must return "ok"
├─ .schema ← View table structures
└─ Check for corruption

Step 3: Forensic Analysis
├─ Extract all tables
├─ Timeline reconstruction
├─ Deleted record recovery (Undark)
└─ Correlation dengan evidence lain

Step 4: Documentation
├─ Table schemas
├─ Record counts
├─ Extracted data (CSV)
└─ Timeline analysis

Common SQLite Locations (Forensic Context):

Android:
├─ /data/data/[package]/databases/
├─ SMS: mmssms.db
├─ Contacts: contacts2.db
├─ Call log: calllog.db
└─ App-specific databases

iOS:
├─ SMS: sms.db
├─ Call history: call_history.db
├─ Safari: History.db
└─ App containers

Browsers:
├─ Firefox: places.sqlite (history/bookmarks)
├─ Chrome: History (SQLite)
└─ Edge: History (SQLite)

Forensic Value:

5.2 Email Database Recovery (PST/OST)

PST (Personal Storage Table) dan OST (Offline Storage Table) adalah format Microsoft Outlook untuk menyimpan email, contacts, calendars.

PST/OST Structure:

PST File Format:
┌─────────────────────────────────────┐
│ File Header                         │
│ - Magic: !BDN                       │
│ - Version indicator                 │
├─────────────────────────────────────┤
│ Metadata Block                      │
│ - Folder tree                       │
│ - Message index                     │
├─────────────────────────────────────┤
│ Data Blocks                         │
│ - Email messages                    │
│ - Attachments                       │
│ - Properties                        │
└─────────────────────────────────────┘

PST Signature:

# PST (ANSI format)
21 42 44 4E = "!BDN"

# PST (Unicode format - Outlook 2003+)
21 42 44 4E (same signature, but format differs)

Recovery Tools:

Tool Type Capability
Kernel PST Viewer Free viewer Read PST files
PST Walker Free viewer Browse PST structure
Outlook Commercial Native viewer
readpst Open-source Convert PST to MBOX

Extraction Workflow:

# Using readpst (Linux/WSL)
sudo apt install pst-utils

# Extract PST to MBOX format
readpst -r -o /output/dir mailbox.pst

# Extract with subdirectories
readpst -D -r -e -o /output/dir mailbox.pst

# Options:
# -D: include deleted items
# -r: recursive subdirectories
# -e: separate files for emails
# -o: output directory

Solved Problem 14 ⭐⭐

Soal: Dalam investigasi kebocoran dokumen militer di Mabes TNI, ditemukan fragmen hex berikut. Identifikasi tipe file dan jelaskan nilai forensiknya!

00000000: 21 42 44 4E 53 4D 04 0E 04 B5 01 B5 00 00 00 00
00000010: 05 00 00 00 10 00 00 00 01 00 00 00 00 00 00 00

Penyelesaian:

Step 1: Identify file signature

21 42 44 4E = "!BDN"

✓ This is a PST (Personal Storage Table) file - Microsoft Outlook data

Step 2: Parse header details

21 42 44 4E                ← "!BDN" magic
53 4D                      ← "SM" (signature)
04 0E                      ← wVer (version)
04 B5                      ← Client version
01 B5                      ← Magic

Version analysis:

Step 3: Forensic value assessment

PST/OST Contains:

Step 4: Investigation approach

Investigation Workflow:
├─ Extract PST file completely
├─ Validate file integrity
├─ Open dengan Outlook atau PST viewer
├─ Extract key evidence:
│   ├─ Emails dengan attachments
│   ├─ Timeline dari sent/received
│   ├─ Contacts (potential accomplices)
│   └─ Deleted items
├─ Search for keywords:
│   ├─ "rahasia", "confidential"
│   ├─ Military terms
│   ├─ Target organization names
│   └─ File transfer references
└─ Correlation dengan evidence lain

Jawaban:

File Type: Microsoft Outlook PST (Personal Storage Table), Unicode format

Technical Details:

Signature: 21 42 44 4E ("!BDN")
Version: Unicode PST (Outlook 2003+)
Format: Outlook 2007/2010/2013
Size: Cannot determine dari fragment
Status: Requires complete extraction

Forensic Value - Konteks Kebocoran Militer:

HIGH-VALUE EVIDENCE karena PST contains:

1. Communication Records:
   ├─ Email correspondence
   ├─ To/From/CC addresses
   ├─ Subject lines
   ├─ Message content
   └─ Timestamps (UTC)

2. Attachments:
   ├─ Dokumen yang ditransmit
   ├─ Original filenames
   ├─ File metadata
   └─ Possible classified documents

3. Metadata:
   ├─ Email headers (IP addresses)
   ├─ Send/receive times
   ├─ Read receipts
   └─ Original file paths

4. Deleted Items:
   ├─ Attempt to conceal
   ├─ Recoverable dengan tools
   └─ Shows consciousness of guilt

5. Contacts Database:
   ├─ Accomplices
   ├─ External contacts
   ├─ Potential buyers
   └─ Network analysis

Investigation Priority Items:

HIGH PRIORITY:
1. Emails mentioning classified documents
2. Attachments dengan military classification
3. External email addresses (non-.mil)
4. Emails dalam timeframe insiden
5. Deleted items (intent to conceal)

MEDIUM PRIORITY:
6. Calendar entries (meeting times)
7. Task lists (planned actions)
8. Contacts (network mapping)
9. Auto-archive configurations

LOW PRIORITY:
10. Personal correspondence (baseline)
11. Spam/junk items

Extraction Procedure:

# Step 1: Extract complete PST file
# (Menggunakan carving tools atau hex editor)

# Step 2: Validate
pst-info mailbox.pst

# Step 3: Convert untuk analysis
readpst -D -r -e -o /evidence/pst mailbox.pst

# Output structure:
/evidence/pst/
├─ Inbox/
├─ Sent Items/
├─ Deleted Items/  ← High priority!
├─ Drafts/
└─ Attachments/

# Step 4: Timeline extraction
# (Using Python/custom tools)

# Step 5: Keyword search
grep -r "rahasia\|confidential\|RAHASIA" /evidence/pst/

Legal Considerations:

CHAIN OF CUSTODY:
├─ Source: [Device/Media description]
├─ Location: [Exact location]
├─ Extracted by: [Investigator]
├─ Date/Time: [Timestamp]
├─ Hash: [SHA-256 dari PST file]
└─ Preservation: [Write-block details]

ANALYSIS DOCUMENTATION:
├─ Tools used: readpst, PST Walker, Outlook
├─ Extraction method
├─ Findings summary
├─ Attachments inventory
└─ Timeline reconstruction

Red Flags untuk Insider Threat:

CONCLUSION: PST file dalam konteks kebocoran militer adalah CRITICAL EVIDENCE yang dapat provide:

Requires immediate preservation dan comprehensive analysis!

6. SSD Recovery Challenges

6.1 TRIM Command dan Garbage Collection

TRIM adalah command yang memberi tahu SSD bahwa data blocks tidak lagi digunakan dan dapat di-erase secara internal.

Traditional HDD vs SSD:

Aspect HDD SSD
Delete Mark as available Mark + TRIM
Overwrite Direct write Write to new block
Recovery High success Low success
TRIM N/A Immediate data loss
Garbage Collection N/A Background cleanup

TRIM Process:

File Deletion on SSD:
┌─────────────────────────────────────┐
│ Step 1: User deletes file           │
│ - File system marks space available │
├─────────────────────────────────────┤
│ Step 2: OS sends TRIM command       │
│ - SSD controller receives command   │
├─────────────────────────────────────┤
│ Step 3: SSD marks blocks invalid    │
│ - Blocks queued for erasure         │
├─────────────────────────────────────┤
│ Step 4: Garbage Collection          │
│ - Background process erases blocks  │
│ - CANNOT be recovered!              │
└─────────────────────────────────────┘

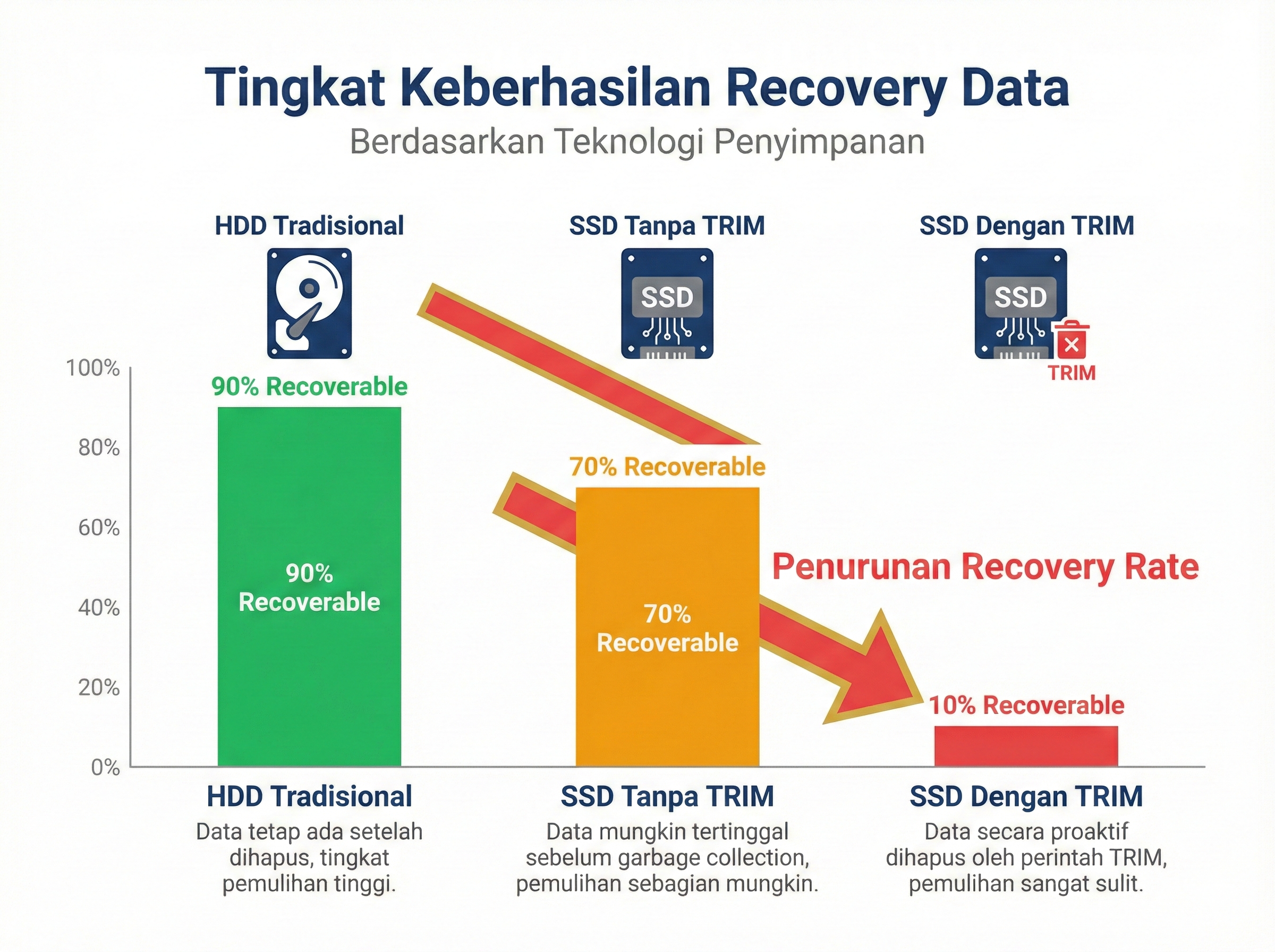

TRIM vs No-TRIM Comparison

Gambar 9.4: Perbandingan recovery success antara HDD, SSD tanpa TRIM, dan SSD dengan TRIM

Garbage Collection:

Garbage Collection adalah background process di SSD controller yang secara aktif mencari dan menghapus invalid blocks untuk mempertahankan performa write.

Garbage Collection Process:
1. SSD monitors free space
2. When threshold reached:
   ├─ Identify invalid blocks
   ├─ Read valid data dari blocks
   ├─ Write valid data ke new location
   └─ Erase entire old blocks
3. Process continues in background
Result: Original data PERMANENTLY ERASED

Solved Problem 15 ⭐⭐⭐

Soal: Laptop dengan SSD Samsung 980 Pro (TRIM enabled) digunakan dalam insider threat incident. File “dokumen_rahasia.pdf” dihapus 3 jam lalu. OS: Windows 11 dengan TRIM enabled. Evaluate kemungkinan recovery dan explain langkah-langkah yang harus dilakukan!

Penyelesaian:

Step 1: Assess TRIM impact

TRIM Timeline:

T = 0:       File deleted
T = 0-5sec:  TRIM command sent to SSD
T = 5sec:    SSD marks blocks invalid
T = ?:       Garbage collection (unpredictable)

Time elapsed: 3 hours
Status: LIKELY already garbage collected

Step 2: Recovery probability analysis

Factors affecting recovery:

NEGATIVE FACTORS (Against recovery):
- ✗ TRIM enabled di OS
- ✗ Modern SSD (aggressive GC)
- ✗ 3 hours elapsed
- ✗ Samsung 980 Pro (high-performance = aggressive TRIM)
- ✗ Windows 11 (automatic TRIM)

POSITIVE FACTORS (For recovery):
- ✓ If laptop was in sleep mode (GC paused)
- ✓ If SSD was near empty (less GC pressure)
- ✓ Possible RAM remnants (if not rebooted)

Recovery Probability: 5-15% (Very Low)

Step 3: Immediate Actions (Time-Critical!)

CRITICAL ACTIONS (DO IMMEDIATELY):
1. POWER OFF device immediately
   └─ Prevent further garbage collection

2. PRESERVE volatile data (if not yet done):
   ├─ RAM dump (may contain file remnants)
   ├─ Network connections
   ├─ Running processes
   └─ Open file handles

3. DO NOT:
   ✗ Reboot
   ✗ Write anything to SSD
   ✗ Run recovery tools on live system
   ✗ Connect to network

Step 4: Forensic Recovery Procedure

PROCEDURE:

A. VOLATILE DATA ACQUISITION (Before power off):
   ├─ Memory dump: FTK Imager
   ├─ String search untuk "dokumen_rahasia"
   └─ Extract PDF remnants dari RAM

B. SSD IMAGING:
   ├─ Write-blocker MANDATORY
   ├─ Create forensic image (E01/dd)
   ├─ Hash verification
   └─ Multiple copies

C. RECOVERY ATTEMPTS:

   1. Quick scan (unallocated space):
      photorec evidence.dd

   2. Signature-based carving:
      scalpel -c pdf.conf evidence.dd

   3. Manual hex search untuk PDF signature:
      hexdump -C evidence.dd | grep "25 50 44 46"

   4. NTFS MFT analysis:
      Check $MFT records untuk file metadata
      (Filename, size, timestamps may persist)

D. ALTERNATIVE SOURCES:

   If SSD recovery fails, investigate:
   ├─ Volume Shadow Copies (if enabled)
   ├─ Cloud backup (OneDrive, etc.)
   ├─ Email attachments
   ├─ Temporary internet files
   ├─ PDF viewer cache
   ├─ Print spooler remnants
   └─ Network share copies

Step 5: Realistic Expectations

LIKELY OUTCOMES:

Best Case (10-15% chance):
├─ Partial file recovery
├─ PDF structure intact
├─ Some content readable
└─ Enough untuk investigation

Most Likely (85-90% chance):
├─ No recoverable data dari SSD
├─ TRIM has erased blocks
├─ Only metadata available
└─ Must rely on alternative sources

Worst Case (5% chance):
├─ Complete erasure
├─ No metadata
└─ No alternative sources

Jawaban:

Recovery Probability: 5-15% (Very Low)

Assessment:

CRITICAL FACTORS:
├─ TRIM: ENABLED ✗
├─ Time elapsed: 3 hours ✗
├─ SSD type: Samsung 980 Pro (aggressive GC) ✗
├─ OS: Windows 11 (auto-TRIM) ✗
└─ File type: Single PDF (not fragmented) ✓

CONCLUSION: Data likely UNRECOVERABLE from SSD

Recommended Action Plan:

PRIORITY 1 (IMMEDIATE):
1. Power off laptop IMMEDIATELY
2. DO NOT attempt recovery on live system
3. Preserve volatile data if still possible:
   - Memory dump (may contain file content)
   - Swap file analysis
   - Hibernation file (hiberfil.sys)

PRIORITY 2 (FORENSIC IMAGING):
4. Create write-protected forensic image
5. Work ONLY on image copies, not original
6. Document all actions untuk chain of custody

PRIORITY 3 (RECOVERY ATTEMPTS):
7. Automated carving: PhotoRec, Scalpel
8. Manual hex analysis
9. MFT record analysis untuk metadata
10. Cluster analysis (check reallocated blocks)

PRIORITY 4 (ALTERNATIVE SOURCES):
11. Volume Shadow Copies (vssadmin list shadows)
12. Windows.old folder (if recent upgrade)
13. Cloud backup services
14. Browser cache (if viewed in browser)
15. PDF viewer temporary files:
    - %TEMP%
    - AppData\Local\Temp
16. Print spooler: C:\Windows\System32\spool\PRINTERS
17. Email (if received/sent via email)
18. Network shares atau file servers
19. Backup systems (if organizational)
20. Recipient copies (if shared)

Realistic Outcome:

FROM SSD:
- File content: 5-15% chance
- File metadata: 30-40% chance (dari MFT)
- Filename, size, timestamps: 60-70% chance

FROM ALTERNATIVE SOURCES:
- Volume Shadow Copies: 40-50% chance
- Cloud backups: 30-40% chance
- Cache/temp files: 20-30% chance
- Email/network: Variable (depends pada case)

Lesson Learned - Forensic Best Practices:

PREVENTION (Future Cases):
1. Disable TRIM pada suspected devices:
   fsutil behavior set DisableDeleteNotify 1

2. Immediate power-off setelah seizure

3. Boot dari external write-protected USB

4. Prioritize volatile data acquisition

5. Understand SSD behavior:
   - TRIM timing varies per manufacturer
   - Garbage collection is unpredictable
   - Recovery window: Minutes to hours (not days)

Reporting untuk Investigation:

FINDINGS REPORT:
├─ Recovery attempts: Documented
├─ Success rate: Low (as expected dengan TRIM)
├─ Metadata recovered: [List items]
├─ Alternative sources: [List options]
├─ Recommendations: [Next steps]
└─ Technical limitations: [TRIM impact explained]

CRITICAL TAKEAWAY: Dengan modern SSDs dan TRIM enabled, window untuk successful recovery is EXTREMELY SHORT (minutes to hours). Investigations harus:

7. Specialized Recovery Scenarios

7.1 Recovery dari Damaged Media

Physical Damage Types:

Damage Type Impact Recovery Possibility Method
Scratched platter (HDD) Read errors Moderate Professional recovery lab
Bad sectors Local corruption High Sector-by-sector imaging
Firmware corruption Drive not detected Low Firmware flashing
Burnt PCB No power Moderate PCB replacement
Water damage Corrosion Low-Moderate Professional cleaning
Physical shock Head crash Very Low Clean room recovery

Bad Sector Handling:

# Using ddrescue for damaged media
ddrescue -f -n /dev/sdb evidence.img evidence.log

# Options:
# -f: Force (overwrite output)
# -n: No-scrape (skip bad sectors first pass)
# -r 3: Retry bad sectors 3 times

# Phase 1: Quick pass (skip bad sectors)
ddrescue -f -n /dev/sdb evidence.img evidence.log

# Phase 2: Retry bad sectors
ddrescue -f -d -r 3 /dev/sdb evidence.img evidence.log

# Phase 3: Aggressive read
ddrescue -f -d -A /dev/sdb evidence.img evidence.log

Solved Problem 16 ⭐⭐

Soal: External hard drive 1TB ditemukan di TKP dengan physical damage. Drive terdeteksi di BIOS tetapi tidak mount di Windows. Smartctl menunjukkan 2,458 bad sectors. Bagaimana approach untuk melakukan imaging dengan data loss minimal?

Penyelesaian:

Step 1: Assess drive condition

# Check SMART status
smartctl -a /dev/sdb

Output indicators:
├─ Reallocated Sectors: 2,458
├─ Current Pending Sectors: 342
├─ Offline Uncorrectable: 116
└─ Overall Health: FAILING

Status: Drive is FAILING - Act immediately!

Step 2: Choose appropriate imaging strategy

Strategy: Multi-pass ddrescue

Reasons:

Step 3: Imaging procedure

# PREPARATION:
# 1. Destination must be >= source size
# 2. Use write-blocker
# 3. Destination should be reliable SSD/HDD

# PHASE 1: Quick forward pass (skip errors)
ddrescue -f -n -v /dev/sdb evidence.img evidence.log

# Expected behavior:
# - Skip bad sectors immediately
# - Fast initial image (~30-60 minutes)
# - Log bad sector locations

# PHASE 2: Backward pass (different head approach)
ddrescue -f -R -v /dev/sdb evidence.img evidence.log

# -R: Reverse direction
# May recover some sectors missed in forward

# PHASE 3: Retry bad sectors (limited)
ddrescue -f -r 1 -v /dev/sdb evidence.img evidence.log

# -r 1: Only 1 retry per sector
# Minimize drive stress

# PHASE 4: Trim edge (if time allows)
ddrescue -f -m evidence.img -v /dev/sdb evidence.img evidence.log

# -m: Trim edges around bad sectors
# May recover additional data

Step 4: Analyze results

# Check ddrescue log
cat evidence.log

# Example log:
# rescued:   984,237,891,584 bytes (984 GB)
# errsize:    15,762,108,416 bytes (16 GB)
# errors:              2,458 sectors

Recovery rate: 984 GB / 1 TB = 98.4% SUCCESS

Step 5: Post-imaging analysis

# Mount image (read-only)
mount -o ro,loop evidence.img /mnt/evidence

# Check file system
fsck -n /dev/loop0

# List files
ls -laR /mnt/evidence > file_list.txt

# Identify corrupted files
# (Files in bad sectors akan unreadable)

Jawaban:

Imaging Approach: Multi-Phase ddrescue Strategy

Step-by-Step Procedure:

PHASE 1: INITIAL ASSESSMENT (5 mins)
├─ SMART check: Identify bad sectors count
├─ Drive condition: Evaluate health
├─ Time estimate: Calculate imaging time
└─ Destination prep: Prepare target storage

PHASE 2: QUICK IMAGING (30-60 mins)
├─ ddrescue -f -n (forward, skip bad)
├─ Maximize readable data quickly
├─ Log bad sector locations
└─ Get ~95% data immediately

PHASE 3: REVERSE PASS (30-60 mins)
├─ ddrescue -f -R (reverse direction)
├─ Different head approach
├─ Recover additional ~2-3%
└─ Update log file

PHASE 4: TARGETED RETRY (15-30 mins)
├─ ddrescue -f -r 1 (single retry)
├─ Focus pada recoverable bad sectors
├─ Minimize drive stress
└─ Recover final ~0.5-1%

PHASE 5: VERIFICATION (10 mins)
├─ Hash calculation (dari good sectors)
├─ File system check
├─ Identify corrupted files
└─ Document recovery rate

Expected Results:

Best Case:
├─ 98-99% data recovered
├─ Most files intact
├─ Few corrupted files (in bad sectors)
└─ Usable evidence

Typical Case:
├─ 95-97% data recovered
├─ Some files corrupted
├─ File system partially damaged
└─ Majority evidence preserved

Worst Case:
├─ 85-90% data recovered
├─ File system severely damaged
├─ File carving required
└─ Manual reconstruction needed

Critical Considerations:

DO:
✓ Use write-blocker
✓ Work in phases
✓ Monitor drive temperature
✓ Document everything
✓ Create multiple copies when possible

DON'T:
✗ Retry excessively (damages drive)
✗ Use Windows tools (writes logs)
✗ Power cycle repeatedly
✗ Delay imaging (drive deteriorating)
✗ Run CHKDSK (may worsen damage)

File Recovery Priority (jika tidak semua recoverable):

PRIORITY 1: Critical Evidence
├─ Documents dalam investigation scope
├─ Images/videos relevant to case
├─ Email databases
└─ Browser history/cache

PRIORITY 2: Supporting Evidence
├─ System files (untuk timeline)
├─ Application data
├─ User profiles
└─ Logs

PRIORITY 3: General Data
├─ Personal files
├─ Media files
└─ Installed applications

Reporting:

IMAGING REPORT:
├─ Source: 1TB External HDD, 2,458 bad sectors
├─ Method: Multi-pass ddrescue
├─ Duration: ~2-3 hours
├─ Success Rate: XX% (calculate dari log)
├─ Corrupted Files: [List if identifiable]
├─ Hash: SHA-256 (dari good sectors)
└─ Next Steps: [File system analysis, carving]

LESSON: Damaged media requires PATIENT, SYSTEMATIC approach. Don’t rush, don’t retry excessively - balance between data recovery and preventing further damage.

Supplementary Problems

Problem 1 ⭐: File System Recognition

Soal: Jelaskan mengapa FAT32 lebih “forensics-friendly” dibanding NTFS untuk file recovery!

Problem 2 ⭐: Signature Identification

Soal: Diberikan hex: 89 50 4E 47 0D 0A 1A 0A. Identifikasi file type!

Problem 3 ⭐⭐: Slack Space Calculation

Soal: File 5,678 bytes pada cluster 8KB. Hitung slack space!

Problem 4 ⭐⭐: Recovery Strategy

Soal: USB 32GB diformat quick format. Strategi recovery yang paling efektif?

Problem 5 ⭐⭐: Tool Selection

Soal: Forensic image 250GB. Pilih: Foremost atau Scalpel? Mengapa?

Problem 6 ⭐⭐⭐: SSD Analysis

Soal: SSD dengan TRIM enabled, file dihapus 1 jam lalu. Langkah-langkah recovery?

Problem 7 ⭐⭐⭐: Database Carving

Soal: SQLite database corrupt. Bagaimana recover individual records?

Problem 8 ⭐⭐⭐: Fragmented File Recovery

Soal: Large video file (4GB) terfragmentasi. Carving strategy?

Problem 9 ⭐⭐⭐: Encrypted Container

Soal: TrueCrypt volume di unallocated space. Approach untuk identifikasi dan analysis?

Problem 10 ⭐⭐⭐: Military Investigation Scenario

Soal: Laptop Kodam dengan SSD, suspected data exfiltration, file dihapus 2 hari lalu. Comprehensive investigation plan?

Ringkasan

Topik Key Points Tools
File Deletion Data remains until overwritten -
File Signatures Magic bytes identify file types HxD, 010 Editor
Slack Space Hidden data source Forensic tools
Unallocated Space Primary recovery target Carving tools
Header/Footer Carving Most common technique PhotoRec, Foremost
Recovery Tools Recuva (GUI), PhotoRec (CLI) Recuva, PhotoRec
Advanced Carving Foremost, Scalpel Foremost, Scalpel
Autopsy Integration Case management + carving Autopsy
Manual Carving Hex analysis HxD, 010 Editor
Database Recovery SQLite, PST/OST DB Browser, readpst
SSD Challenges TRIM, garbage collection -
Damaged Media ddrescue multi-pass ddrescue

Referensi

  1. Carrier, B. (2005). File System Forensic Analysis. Addison-Wesley Professional. Chapter 12-14.

  2. Casey, E. (2022). Digital Evidence and Computer Crime: Forensic Science, Computers, and the Internet (4th ed.). Academic Press. Chapter 7.

  3. Phillips, A., Nelson, B., & Steuart, C. (2022). Guide to Computer Forensics and Investigations (7th ed.). Cengage Learning. Chapter 8.

  4. Nikkel, B. (2021). Practical Forensic Imaging: Securing Digital Evidence with Linux Tools. No Starch Press. Chapter 8-10.

  5. Hargreaves, C., & Chivers, H. (2008). “Recovery of Encryption Keys from Memory Using a Linear Scan.” Third International Conference on Availability, Reliability and Security.

  6. Wei, M., Grupp, L. M., Spada, F. E., & Swanson, S. (2011). “Reliably Erasing Data from Flash-Based Solid State Drives.” FAST.

  7. Garfinkel, S. L. (2007). “Carving Contiguous and Fragmented Files with Fast Object Validation.” Digital Investigation.

  8. Richard III, G. G., & Roussev, V. (2005). “Scalpel: A Frugal, High Performance File Carver.” DFRWS 2005.

  9. NIST. (2006). Test Results for Digital Data Acquisition Tool: FTK Imager 2.5.3. NIST Computer Forensics Tool Testing Program.

  10. Fairbanks, K., Lee, C., & Owen, H. (2012). “Forensic Implications of Solid State Drives.” Journal of Digital Forensics, Security and Law.

License / Lisensi

© 2026 Anindito. Licensed under Creative Commons Attribution 4.0 International (CC BY 4.0).

You are free to:

Under the following terms:

https://creativecommons.org/licenses/by/4.0/
